Chip Tycoon Turns Semiconductor Manufacturing Into a Playable Factory
The interactive format makes an opaque industrial process legible to a general audience, breaking down a multi-month, multi-kilometer production flow into discrete animated steps anyone can follow.
Reporting from 1 source: GIGAZINE.
Chip Tycoon, a browser-based interactive visualization, walks users through the 20 stages of semiconductor manufacturing. The project animates a miniature factory where carts carry chips between facilities, from raw quartz sand to finished wafers. It covers purification, crystal growth, wafer slicing, photolithography, etching, doping, wiring, and testing, with each step explained in plain language.

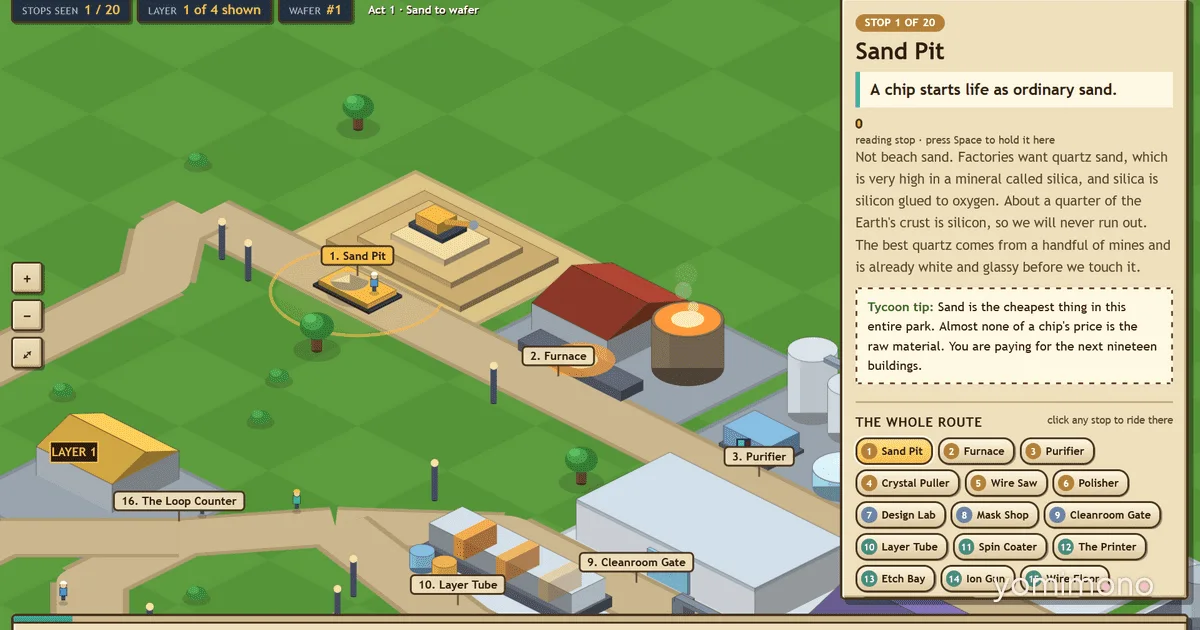

The project opens on a miniature semiconductor factory, with carts ferrying chips between 20 numbered facilities. The tour starts with quartz sand, chosen for its high silica content, and follows the material through a 2000-degree electric furnace that yields silicon at roughly 99 percent purity.
From there the explanation moves through repeated distillation to reach 99.9999999 percent purity, crystal growth via a seed crystal pulled over one to two days, and wafer slicing with diamond-coated wire saws. Later stages cover photoresist coating under yellow light, EUV exposure in vacuum, plasma etching, ion implantation, and copper wiring built up over a dozen layers.
The final sections address yield, the pass rate that decides whether a fab turns a profit, and the reason production takes about three months: the roughly 60 layers each require the same print, etch, and polish cycle repeated.
Synthesized by Yomimono from the 1 cited source below, including Japanese-language reporting where cited, then editorially reviewed before publishing.
